Description

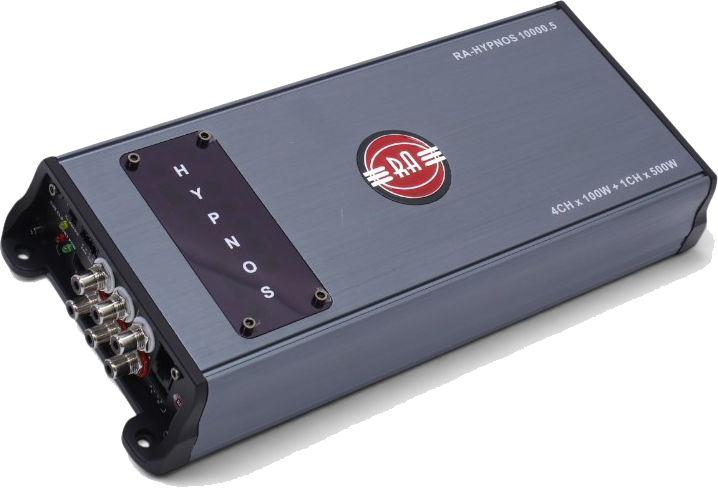

REFERENCE AUDIO HYPNOS 5 CHANNEL AMPLIFIER
• Five-channel Class D amplifier
• Powers speakers and a subwoofer from one amplifier
• Two-ohm stereo capability
• Four-ohm bridged capability
• Adjustable low-pass filter
• Adjustable high-pass filter
• Adjustable bass boost
• Built-in protection system
• Compact installation-friendly enclosure
SPECIFICATIONS
• Model: RA-HYPNOS 10 000.5
• Amplifier class: Class D
• Number of channels: 5
• RMS power at 4 ohms: 4 × 100 W + 1 × 500 W
• RMS power at 2 ohms: 4 × 180 W + 1 × 352 W
• RMS power bridged at 4 ohms: 2 × 354 W + 1 × 197 W
• Frequency response: 20 Hz–20 kHz
• Total harmonic distortion: Less than 0.05%
• Input sensitivity: 0.2–6 V
• Signal-to-noise ratio: Greater than 90 dB
• Low-pass filter: 50–500 Hz
• High-pass filter: 50 Hz–2 kHz
• Bass boost: 0–12 dB
• Protection system: Yes
• Operating voltage: 9–16 V
• Dimensions: 260 × 124 × 47 mm
